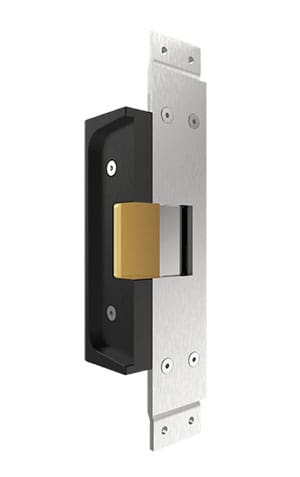

Self-Latching Lock Monitoring Box MSB62-333

Self-Latching Lock Monitoring Box MSB62-333

AMS Australia

Product overview

The MSB62-333 is the latest innovation in lock monitoring technology which overcomes the issue of a door with a square bolt deadlock not latching if the square bolt dead lock is locked with the door in the open position. The microswitch function is within the limits of normal manufacturing capabilities. The lock monitoring box comes supplied with one change over contact that can be used for multiple applications. Standard security wiring applies depending on the installation system and requirements.

Only product to overcome fire regulations and Security requirements on a square bolt deadlock.

KEY FEATURES

• Fire regulations & Security requirements on a square bolt deadlock
• 4 hr fire rated

APPLICATIONS

Any door that requires dual locking such as:

• Secure Rooms
• Commercial offices
• High security buildings
• Critical infrastructure
• Airports
• Universities and schools
• Hospitals Major Utilities

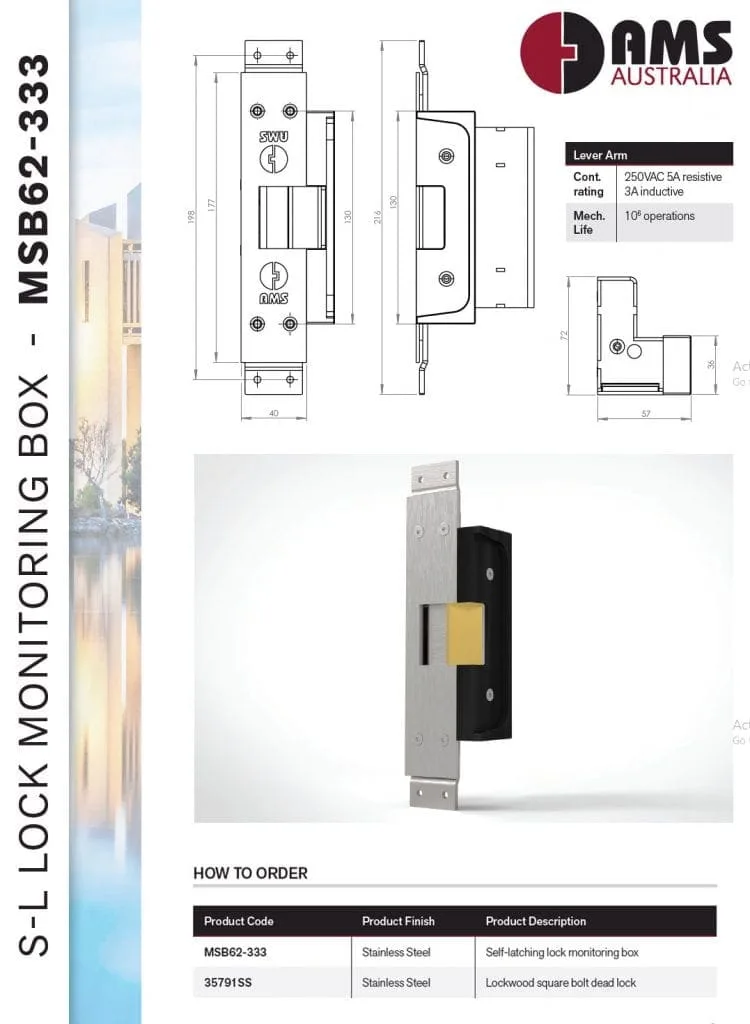

DIMENSIONS

• Body: 108mm long x 50mm widest back to 25mm x 7mm deep
• Face plate: 4mm thick x 178mm long x 40mm wide

INSTALLATION

• Can be installed in steel, aluminium or wooden frames
• Comes with metal frame fixing kit

CONSTRUCTION

• Stainless steel box
• Removable side for easy access
• Stainless steel face plate

COMPONENTS

• Included OMRON lever arm tamper switch
• Incorporates security screws to secure face plate

COMPATIBILITY

• Compatible with MOST square bolt type deadlocks
• Compatible with the DLLH-33 Dual Lock Lever Handle
• 45mm minimum frame thickness
